Xeon W and Asus WS C422


Recommended Posts

  • Supervisor

I am helping a friend of mine to configure properly this huge system



I wil put here some config to achieve optimal result for his system which is also a very similar iMac Pro 2017 system I have seen on hackintosh scene







Xeon W is properly supported by latest OSX



The goal is to find proper patches for Asus WS 422 bios



attached some config.plist to test







first one



only complete reboot fix © Pike R. Alpha






config1.plist.zip

  • Like 1
Link to post
Share on other sites

Hi everybody on this Italian forum, nice to be her.



I'm the guy with the Asus WS C422 mobo and the Intel Xeon W 2175 processor.



My friend @fabiosun is kind to try to help me with the correct config.

Any input much appreciated.

Link to post
Share on other sites
"fabiosun" post_id="12090" time="1534494827" user_id="56">

ciao obus



Have you tried these two config .plist?



I will do that now and report back.







Added in 23 minutes 3 seconds:



Ok.



Config1 boots fine but processor is on full throttle under idle.



If I put FakeCPUID 0x0506E4 still full throttle under idle.







Config2 same as config1 but if I put FakeCPUID 0x0506E4 in everything is fine with processor under idle.







Added in 5 minutes :



Changed in bios from sync all cores to auto to no avail.

Link to post
Share on other sites
  • Supervisor

first try



in config 1 state flag Kernel PM on config.plist with clover configuration







Ha scritto dopo 4 minuti 18 secondi:



then try this kernel patches togheter bootstrap patch







find



31D2E87E FCFFFF



replace



31D29090 909090



comment_xcpm_smt_scope







find



31D2E891 FCFFFF



replace



31D29090 909090



comment_xcpm_core_scope







find



31D2E8AE FCFFFF



replace



31D29090 909090



comment_pkg_core_scope







Ha scritto dopo 1 minuto 16 secondi:



do not do any changes in bios during this test



also we know using fakecpuid is helping..but we have a goal to avoid it :)

  • Like 1
Link to post
Share on other sites

then try this kernel patches togheter bootstrap patch







find



31D2E87E FCFFFF



replace



31D29090 909090



comment_xcpm_smt_scope







find



31D2E891 FCFFFF



replace



31D29090 909090



comment_xcpm_core_scope







find



31D2E8AE FCFFFF



replace



31D29090 909090



comment_pkg_core_scope







Ha scritto dopo 1 minuto 16 secondi:



do not do any changes in bios during this test



also we know using fakecpuid is helping..but we have a goal to avoid it :)









No boot. Hang at random seed +++++++++++++++

Link to post
Share on other sites
  • Supervisor

ok



from from clover boot menu



press O



and disable alternatively kernel patches above



leave only and always active boot strap



and cycle the others



ie



bootstrap



scope







bootstrap



core







boot strap



MSR







boot strap



pkg







and see



also, when system starts try to open terminal window and run:



sysctl -n machdep.xcpm.mode







and







sysctl -n machdep.xcpm.vectors_loaded_count







post results

  • Like 1
Link to post
Share on other sites
"fabiosun" post_id="12098" time="1534500773" user_id="56">

https://postimg.cc/image/rc9fm5vx7/">LINK_TEXT>







in processor tab you see unknown or your processors?



obviously if you have not modified it manually..as I do in my case



Processor is identified perfect!!







Added in 15 minutes 11 seconds:



bootstrap



pkg=







Boot but full throttle and no xcpm or xcpm.vectors (Value 0)







$ sysctl -n machdep.xcpm.mode



0



$ sysctl -n machdep.xcpm.vectors_loaded_count



0

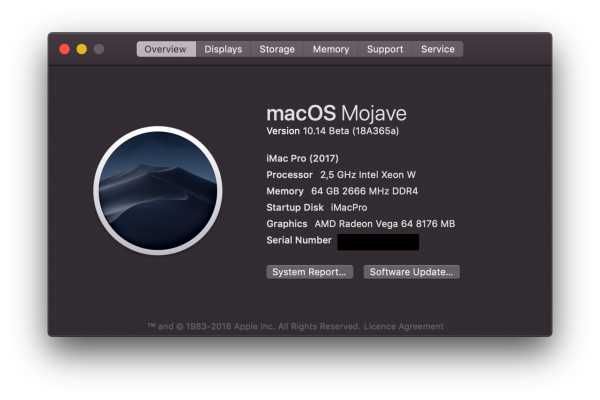

Screenshot 2018-08-17 at 15.33.46.png

Link to post
Share on other sites
  • Supervisor

It is the one you use in your config.plist



use it togheter boot strap and see



(without fakecpuid obviusly) :)







Ha scritto dopo 1 minuto 35 secondi:



if possible put also here actual efi you are using in the tries



Thanks







Ha scritto dopo 5 minuti 53 secondi:



obus, if you can download from here this tool



https://www.macos86.it/MacOS86_Downloads/Applicazioni/Info/Hack_Info.zip">MacOS86_Downloads/Applicazioni/Info/Hack_Info.zip">https://www.macos86.it/MacOS86_Downloads/Applicazioni/Info/Hack_Info.zip







post zip it produce. in this way is it possible to check other aspect

  • Like 1
Link to post
Share on other sites
"fabiosun" post_id="12113" time="1534512509" user_id="56">

config.plist.zip







Try with this



If it boots



post also frequency vector and xcpm terminal output







Boot but full throttle and no xcpm or xcpm.vectors (Value 0)







$ sysctl -n machdep.xcpm.mode



0



$ sysctl -n machdep.xcpm.vectors_loaded_count



0

Link to post
Share on other sites

Hi @fabiosun[/mention]



I could se in bootlog that USB Port Limit Patch ©PMHeart was not allowed to load by os.



Could that be a culprit and is there another working patch for 10.14.7 beta?

Link to post
Share on other sites
  • Supervisor

for 10.14.x



AppleUSBXHCI



find



83FB0F0F 83030500 00



Replace



83FB0F90 90909090 90



MatchOS



10.14.x







sorry I am concentrated on CPU..I haven't seen you are not using correct one for Mojave







Ha scritto dopo 5 minuti 52 secondi:



also you can find here (in Italian language) a summary of changement



USB port limit thread

  • Like 1
Link to post
Share on other sites
"fabiosun" post_id="12123" time="1534519858" user_id="56">

ok



in that condition could you flag in config KernelXCPM and see



Boot but full throttle and no xcpm or xcpm.vectors (Value 0)







$ sysctl -n machdep.xcpm.mode



0



$ sysctl -n machdep.xcpm.vectors_loaded_count



0

Link to post
Share on other sites
  • Supervisor

uhm for me today is enough



if you can try boot strap togheter fakecpuid..and test if XCPM and Frequency Vectors are set to 1







good evening :)







Ha scritto dopo 40 secondi:



tomorrow we will try other solution :)

  • Like 1
Link to post
Share on other sites
"fabiosun" post_id="12125" time="1534527494" user_id="56">

uhm for me today is enough



if you can try boot strap togheter fakecpuid..and test if XCPM and Frequency Vectors are set to 1







good evening :)







Ha scritto dopo 40 secondi:



tomorrow we will try other solution :)



No problems @fabiosun[/mention] .



Take your time.



I will test some for myself.







Bootstrap and FakeCPUID gives:







Boot but full throttle and no xcpm or xcpm.vectors (Value 0)



$ sysctl -n machdep.xcpm.mode



0



$ sysctl -n machdep.xcpm.vectors_loaded_count



0

Link to post
Share on other sites
