BIOS settings (Asus - Asrock - Gigabyte - MSI)


iCanaro

Recommended Posts

  • Support Team

Premesse:

- non ho inventato niente... sono tutte info sparse in rete, le raduno qui per comodità nostra e dei frequentatori del forum.

- se ci sono errori, imperfezioni, novità è gradita la segnalazione...i lavori sono sempre in corso. 🤞



 Per tutte le marche di schede madri: Serial Port --> Disabled



 [GIGABYTE]



- Load Optimized Defaults

- M.I.T. -> Advanced Memory Settings Extreme Memory Profile (X.M.P.) : Profile1 oppure Auto

- BIOS -> Fast Boot : Disabled

- BIOS -> LAN PXE Boot Option ROM : Disabled

- BIOS -> Storage Boot Option Control : UEFI

- Peripherals -> Trusted Computing -> Security Device Support : Disable

- Peripherals -> Network Stack Configuration -> Network Stack : Disabled

- Peripherals -> USB Configuration -> Legacy USB Support : Auto

- Peripherals -> USB Configuration -> XHCI Hand-off : Enabled

- Chipset -> Vt-d : Disabled

- Chipset -> Wake on LAN Enable : Disabled

- Chipset -> IOAPIC 24-119 Entries : Enabled

news 02-06-2019 Nei recenti BIOS della serie Z390 sezione Boot è comparsa la voce:

CSM: impostare disable (thanks Baio77)

ove presente: CFG-Lock impostare: Disabled

se non è possibile vedi qui e qui come sbloccarlo



Scheda video dedicata dGPU:

- Peripherals -> Initial Display Output : PCIe 1 Slot

- Chipset -> Integrated Graphics : Disabled



Scheda video integrata iGPU:

- Peripherals -> Initial Display Output : IGFX

- Chipset -> Integrated Graphics : Enabled

- Chipset -> DVMT Pre-Allocated :128Mb x Monitor 4K altrimenti impostare 64Mb



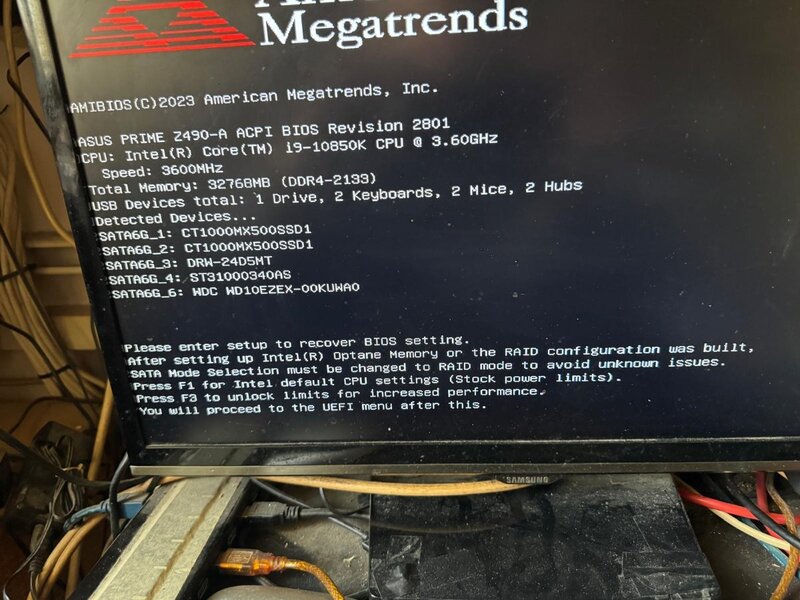

 [ASUS]



- Load Optimized Defaults

- AI Tweaker \ Ai Overclock tuner -> Auto

- Advanced \ CPU Configuration -> Intel Virtualizaiton Technology: Enabled

- Advanced \ CPU Configuration ->  CPU -> Power Management Control -> CFG Lock: Disabled

- Advanced \ System Agent (SA) Configuration -> Vt-d: Disabled

- Advanced \ PCH Configuration -> IOAPIC 24-119 Entries: Enabled

- Advanced \ Onboard Devices Configuration -> RGB LED Lighting -> When system is in sleep, hibernate or soft off states: OFF

- Advanced \ AMP Configuration -> Power On By PCI-E/PCI

- Advanced \ Network Stack Configuration -> Network Stack: Disabled

- Advanced \ USB Configuration -> Legacy USB Support: Auto

- Boot -> Fast Boot : Disabled

- Boot -> Secure Boot -> OS Type : Other OS

- Boot -> CSM (Compatibility Support Module) Launch CSM: Disabled



Scheda video dedicata dGPU:

- Advanced \ System Agent (SA) Configuration \ Graphics Configuration -> Primary Display: PCIE

- Advanced \ System Agent (SA) Configuration \ Graphics Configuration -> iGPU Multi Monitor: Disabled



Scheda video integrata iGPU:

- Advanced \ System Agent (SA) Configuration \ Graphics Configuration -> Primary Display: IGFX (Optional) Hardware Acceleration

- iGPU Multi-Monitor: Enabled will cause Primary Display to be set to IGFX. If you are using a dedicated graphics card change it back to PEG

- Advanced \ System Agent (SA) Configuration\Graphics Configuration -> iGPU Multi-Monitor: Enabled

- For DVMT Pre-Allocated to show in BIOS you may need to save & reenter BIOS after setting iGPU Multi-Monitor: Enabled

- Advanced \ System Agent (SA) Configuration\Graphics Configuration -> DVMT Pre-Allocated :128Mb x Monitor 4K altrimenti impostare 64Mb



 [ASROCK]



- Load Optimized Defaults

- OC Tweaker \ DRAM Configuration -> Load XMP Setting : XMP 2.0 Profile 1 oppure Auto

- Advanced \ CPU Configuration -> Intel Virtualization Technology : Enabled

- Advanced \ Chipset Configuration -> Vt-d : Disabled

- Advanced \ Chipset Configuration -> IOAPIC 24-119 Entries: Enabled

- Advanced \ Storage Configuration -> Sata Mode Selection: AHCI

- Advanced \ Super IO Configuration -> Serial Port: Disabled

- Advanced \ USB Configuration -> Legacy USB Support : Enabled

- Advanced \ USB Configuration -> PS/2 Simulator : Disabled

- Advanced \ USB Configuration -> XHCI Hand-off : Enabled

- Security \ Secure Boot -> Secure Boot: Disabled

- Boot -> Fast Boot: Disabled

- Boot -> Boot From Onboard LAN: Disabled



Scheda video integrata iGPU:

- Advanced \ Chipset Configuration -> Primary Graphics Adapter : Onboard

- Advanced \ Chipset Configuration -> Share Memory : 128Mb x Monitor 4K altrimenti impostare 64Mb

- Advanced \ Chipset Configuration -> IGPU Multi-Monitor : Enabled



Scheda video dedicata dGPU:

- Advanced \ Chipset Configuration -> Primary Graphics Adapter : PCI Express

- Advanced \ Chipset Configuration -> IGPU Multi-Monitor : Disabled



 [MSI]



- Save & Exit → Restore Defaults : Yes

- Settings \ Advanced \ Integrated Peripherals → Network Stack : [Disabled]

- Settings \ Advanced \Integrated Peripherals → Intel Serial IO : [Disabled]

- Settings \ Advanced \ USB Configuration → XHCI Hand-off : [Enabled]

- Settings \ Advanced \ USB Configuration → Legacy USB Support : [Auto]

- Settings \ Advanced \ Windows OS Configuration → MSI Fast Boot : [Disabled]

- Settings \ Advanced \ Windows OS Configuration → Fast Boot : [Disabled]

- Overclocking → Extreme Memory Profile(X.M.P) : [Enabled]

- Overclocking \ CPU Features → Intel Virtualization Tech : [Enabled]

- Overclocking \ CPU Features → Intel VT-D Tech : [Disabled]

- Settings \ Boot → Boot mode select : [LEGACY+UEFI] NB questa impostazione potrebbe essere legata al CSM, quindi in caso di problemi durante l'installazione o con schede video AMD impostare su UEFI

- Settings \ Boot → Boot Option #1: UEFI: “macOS_flash_drive_name“





In base alla GPU che stai utilizzando, modifica le seguenti impostazioni:



Scheda video dedicata (dGPU):

Settings \ Advanced \ Integrated Graphics Configuration → Initiate Graphic Adapter : PEG



Scheda video integrata Intel (iGPU):

Advanced \ Integrated Graphics Configuration → Initiate Graphic Adapter : IGD

- Settings \ Advanced \ Integrated Graphics Configuration → DVMT Pre-Allocated :128Mb x Monitor 4K altrimenti impostare 64Mb

(64MB se è il massimo che puoi impostare)

(Optional) Wake hackintosh from sleep thru Input:

Advanced \ Wake Up Event Setup → Resume By USB Device : [Enabled]





:nov: Resizable BAR Support disponibile su alcune schede madri Intel Z490, Z590 e successive e su AMD X570, B550 impostare su: Disabled



 su sitemi AMD se presente nel BIOS la voce "Above4G Decoding" abilitandola, potrebbe diventare superfluo i boot-arguments npci=0x2000 npci=0x3000



 con schede video AMD il CSM deve essere su disable per tutte le marche di schede madri



 Settembre 2019



UPDATE 2: su alcuni bios recenti, primo visionato un portatile HP di bubbleg5, ssdt awac non può funzionare, quindi vi è un più idoneo:


SSDT-RTC0



 Aprile 2019 nota per: B360, B365, H310, H370, Q370, Z390 in generale per tutti le marche di schede madri:

CLOVER Acpi/DSDT


Patched Comment: Fix RTC _sta issue

Find: 79001415 5F535441 00A00A93

Repl: 79001415 5A535441 00A00A93
OC




 [i consigli di vit9696]



Before using AptioMemoryFix please ensure that you have:

Most up-to-date UEFI BIOS firmware (check your motherboard vendor website).

Fast Boot and Hardware Fast Boot disabled in BIOS if present.

Above 4G Decoding or similar enabled in BIOS if present.

WARNING: On some motherboards (notably ASUS WS-X299-PRO) this option causes adverse effects, and must be disabled. While no other motherboards with the same issue are known, consider this option to be first to check if you have erratic boot failures.

VT-d disabled in BIOS if present (you could also drop ACPI DMAR table with a bootloader).

No slide boot argument present in NVRAM or anywhere else (it is not necessary unless you cannot boot at all or see No slide values are usable! Use custom slide! message from AptioMemoryFix).

CFG Lock (MSR 0xE2 write protection) disabled in BIOS if present (consider patching it otherwise if you have enough skills). See VerifyMsrE2 section for more details.

CSM disabled in BIOS if present (you may need to flash GOP ROM on NVIDIA 6xx/AMD 2xx or older, using GopUpdate or AMD UEFI GOP MAKER could simplify things).

EHCI/XHCI Hand-off enabled in BIOS only if boot stalls unless USB devices are disconnected.

VT-x, Hyper Threading, Execute Disable Bit enabled in BIOS if present.

While it may not be required, sometimes you have to disable Thunderbolt support, Intel SGX, and Intel Platform Trust in BIOS if present. When debugging sleep issues you may want to (temporarily) disable Power Nap and automatic power off, which appear to sometimes cause wake to black screen or bootloop issues on older platforms. The particular issues may vary, but in general you should check ACPI tables first. Here is an example of a bug found in some Z68 motherboards. To turn Power Nap and the others off run the following commands in Terminal:

sudo pmset autopoweroff 0


sudo pmset powernap 0


sudo pmset standby 0
Note, that these settings may reset at hardware change and in certain other circumstances. To view their current values run pmset -g.

Note, if you see a lot of Start/End lines in verbose mode you must ensure you do not have bootercfg variable stored in NVRAM. See this post for details. If it still does not help you could use the following command in Terminal (either with System Integrity Protection disabled or from Recovery HD):

sudo nvram bootercfg="log=0 debug=0"

Edited by iCanaro
Aggiornamenti & Migliorie
  • Like 3
  • Thanks 2
  • +1 2
Link to comment
Share on other sites

  • 2 months later...
  • 8 months later...
  • Support Team

Nota per i possessori di Asus H370 in caso di problemi... Gengik mi ha fatto notare che questo setup



https://www.macos86.it/viewtopic.php?p=30548#p30548">viewtopic.php?p=30548#p30548" [link non funzionante]



è stato molto utile ai fini della installazione che era problematica:





SYSTEM TIME AND ALARM SOURCE:



- acpi time and alarm device



- legacy



impostare su Legacy (RTC)



Edited by iCanaro
  • Like 1
Link to comment
Share on other sites

  • Administrators

In caso di problemi con bios recenti su serie 370 e 390, qualora l'opzione nel bios sopra citata non sia presente, aggiungete questa patch sul config



in Acpi/DSDT Patched



Comment: Fix RTC _sta issue
Find:79001415 5F535441 00A00A93
Repl:79001415 5A535441 00A00A93



Testata su Asus quindi va bene anche per Asrock quasi sicuramente e testata su un gigabyte Z370 con bios F13 di @netgear





UPDATE: Può essere usato ssdt allegato al posto della patch, il quale risolve il problema RTC (awac) in modo anche migliore



UPDATE 2: su alcuni bios recenti, primo visionato un portatile HP, ssdt awac non può funzionare, quindi vi è uno idoneo.

SSDT-RTC0.aml.zip

SSDT-AWAC.aml.zip

Edited by Gengik84
Link to comment
Share on other sites

  • 2 months later...
  • Administrators
"Gengik84" post_id="31678" time="1555613713" user_id="2">

In caso di problemi con bios recenti su serie 370 e 390, qualora l'opzione nel bios sopra citata non sia presente, aggiungete questa patch sul config



in Acpi/DSDT Patched

[code]Comment: Fix RTC _sta issue
Find:79001415 5F535441 00A00A93
Repl:79001415 5A535441 00A00A93

[/code]



Testata su Asus quindi va bene anche per Asrock quasi sicuramente e testata su un gigabyte Z370 con bios F13 di @netgear



Testata su ASRock B360m Pro4, va

Link to comment
Share on other sites

  • 2 months later...
"Gengik84" post_id="31678" time="1555613713" user_id="2">

UPDATE: Può essere usato ssdt allegato al posto della patch, il quale risolve il problema RTC (awac) in modo anche migliore



SSDT-AWAC.aml.zip



UPDATE 2: su alcuni bios recenti, primo visionato un portatile HP, ssdt awac non può funzionare, quindi vi è uno idoneo.



SSDT-RTC0.aml.zip

Buon di a TUTTI , volevo confermare che l'SSDT-RTC0 ha funzionato su 2 Laptop HP , sotto le schermate di blocco di 1 dei 2 Laptop



https://postimg.cc/KkpdLnw9">LINK_TEXT>



https://postimg.cc/k2yYKQtx">LINK_TEXT>

Link to comment
Share on other sites

  • 2 months later...
  • 4 months later...
Il 19/5/2018 at 18:56, iCanaro ha scritto:

 [ASROCK]



- Load Optimized Defaults

- OC Tweaker \ DRAM Configuration -> Load XMP Setting : XMP 2.0 Profile 1 oppure Auto

- Advanced \ CPU Configuration -> Intel Virtualization Technology : Enabled

- Advanced \ Chipset Configuration -> Vt-d : Disabled

- Advanced \ Chipset Configuration -> IOAPIC 24-119 Entries: Enabled

- Advanced \ Storage Configuration -> Sata Mode Selection: AHCI

- Advanced \ Super IO Configuration -> Serial Port: Disabled

- Advanced \ USB Configuration -> Legacy USB Support : Enabled

- Advanced \ USB Configuration -> PS/2 Simulator : Disabled

- Advanced \ USB Configuration -> XHCI Hand-off : Enabled

- Security \ Secure Boot -> Secure Boot: Disabled

- Boot -> Fast Boot: Disabled

- Boot -> Boot From Onboard LAN: Disabled



Scheda video integrata iGPU:

- Advanced \ Chipset Configuration -> Primary Graphics Adapter : Onboard

- Advanced \ Chipset Configuration -> Share Memory : 128Mb x Monitor 4K altrimenti impostare 64Mb

- Advanced \ Chipset Configuration -> IGPU Multi-Monitor : Enabled



Scheda video dedicata dGPU:

- Advanced \ Chipset Configuration -> Primary Graphics Adapter : PCI Express

- Advanced \ Chipset Configuration -> IGPU Multi-Monitor : Disabled



EDIT

Edited by krellz
Link to comment
Share on other sites

  • 9 months later...
  • 7 months later...
  • 1 month later...
  • 1 year later...
