AMD Power Gadget - Tool & Fan


iCanaro

Recommended Posts

  • Support Team

KEXT

  • Added support for reading OEM board information.

AMD Power Tool

  • More system configuration, such as motherboard name, now displays in Overview tab.
  • PStateDef can now be saved as file and imported from a file using PState Editor

Known issues

  • GraphView might not display as rounded corner on older version of macOS
  • Some sensor data will not show up in iStat depending on SMBios type. Refer to #10
  • Instructions retired might not includes instructions from hyper threaded cores. This is due to some bug in underlying dependences.
Link to comment
Share on other sites

  • Support Team

KEXT

  • Introduced a new method for authorizing user process to perform dangerous changes.
  • Fixes temperature offset problem on some processor.

AMD Power Tool

  • Applying changes in PState Editor no longer require root user. A confirmation will be prompted by kernel when AMD Power Tool was launched by a normal user. You can still use boot-arg -amdpnopchk to disable this check.

Known issues

  • GraphView might not display as rounded corner on older version of macOS
  • Some sensor data will not show up in iStat depending on SMBios type. Refer to #10
  • Instructions retired might not includes instructions from hyper threaded cores. This is due to some bug in underlying dependences.
  • Motherboard data may failed to read on some system causes AMD Power Tool to displays it as unknown.
Link to comment
Share on other sites

  • Support Team

KEXT

  • SMC keys now registered correctly, again.
  • Fixes some issues preventing the reading of OEM board information.

AMD Power Tool

  • Finally have an icon.

Known issues

  • GraphView might not display as rounded corner on older version of macOS
  • Some sensor data will not show up in iStat depending on SMBios type. Refer to #10
  • Instructions retired might not includes instructions from hyper threaded cores. This is due to some bug in underlying dependences.
  • Motherboard data may still failed to read on some system causes AMD Power Tool to displays it as unknown.
  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...
  • Support Team

This new release contains important changes.
Please read carefully before you proceed.

Note

SMCAMDProcessor now comes in two separate binaries(kernel extensions) to allow the use of standalone features without VirtualSMC as a dependency. Please refer to the installation section in README for more instructions on upgrading.

KEXTs

  • Implements a better idle thread to reduce idle energy consumption and increase system performance(a little).
  • Dynamic PState stepping on demand.
  • Power reading now have a better accuracy.
  • Fixes issues with instructions retired counter.

AMD Power Gadget

  • Minor adjustments in UI to adapt to changes in Kext :).

Known issues

  • GraphView might not display as rounded corner on older version of macOS
  • Some sensor data will not show up in iStat depending on SMBios type. Refer to #10
Link to comment
Share on other sites

  • Support Team

testati nuovi kexts e app, primo impatto molto positivo, PM in automatico veramente ottimo



NB: mi raccomando con OC nella gerarchia dei kext, viene prima AMDRyzenCPUPowerManagement.kext

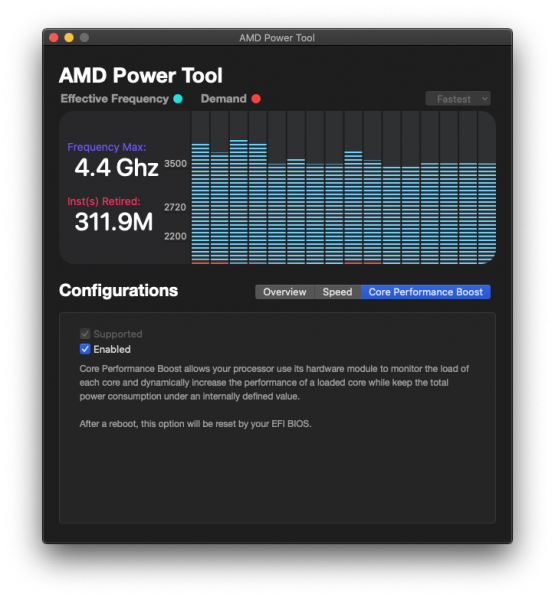

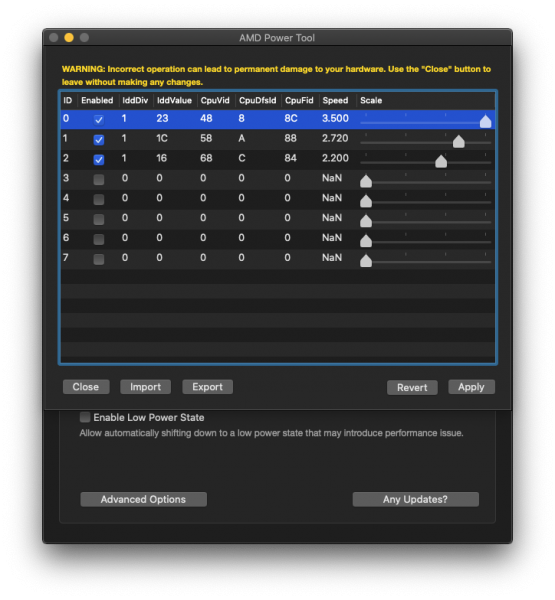

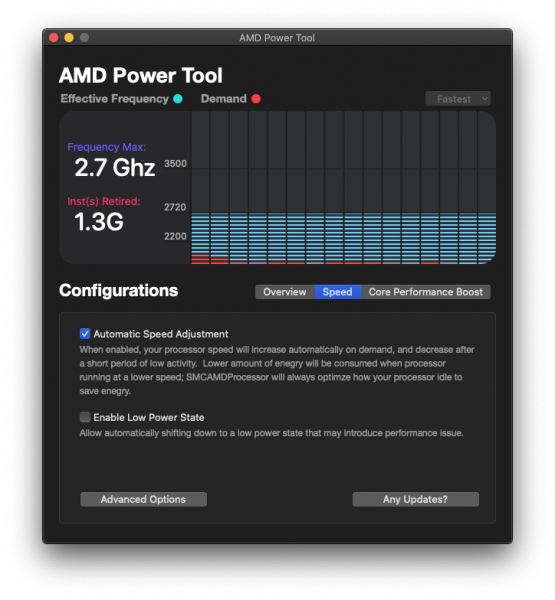

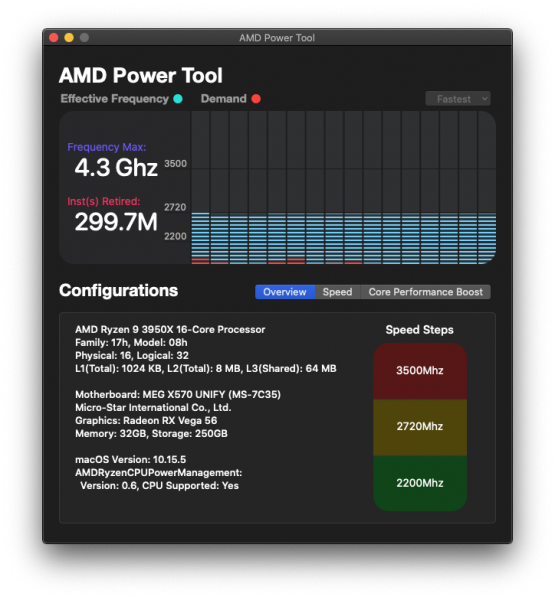

313649347_Schermata2020-04-02alle17_24_00.thumb.png.6fcb4c6d60759eefcc32ecb3f2bdf3a0.png1480549568_Schermata2020-04-02alle17_24_19.thumb.png.438fb3fe9d29e7fccc8e0df892c8de83.png1362042616_Schermata2020-04-02alle17_24_28.thumb.png.e644b494074f8bf02f6829aa5116369a.png939480167_Schermata2020-04-02alle17_26_22.thumb.png.cc17f9b0f0c0bc06cdc209e998851554.png

  • Thanks 1
Link to comment
Share on other sites

  • 1 month later...
  • 2 weeks later...
  • Support Team

The experimental fan speed control was included in this release. At current stage only a very limited set of controllers are supported. You can open fan control menu to find out what SMC chip you have or whether your board is supported.
Please refer to this(#66) discussion for more updates or request for support.

KEXTs

  • Added fan control support for NCT67XX Family SuperIO SMC devices.

AMD Power Gadget

  • Added max line in CPU frequency graph
  • Fixes crash when "Cancel" was selected during export of PState file
  • Added menu for reading and adjusting fan speed.
Assets5
Link to comment
Share on other sites

  • Support Team

The experimental fan speed control was included in this release. At current stage only a very limited set of controllers are supported. You can open fan control menu to find out what SMC chip you have or whether your board is supported.
Please refer to this(#66) discussion for more updates or request for support.

KEXTs

  • Fixes support for NCT6798D.

AMD Power Gadget

  • Refine visual elements.
Assets5




Link to comment
Share on other sites

  • 2 weeks later...
  • Support Team

The experimental fan speed control was included in this release. At current stage only a very limited set of controllers are supported. You can open fan control menu to find out what SMC chip you have or whether your board is supported.
Please refer to this(#66) discussion for more updates or request for support.

KEXTs

  • Added fan control support for some IT86XXE Family SuperIO SMC devices.

AMD Power Gadget

  • Added new translucent appearance that can be switched from menu bar.
  • Fixes a crash when no GPU was detected on the system.
  • Thanks 1
Link to comment
Share on other sites

  • 3 months later...
  • Support Team

segui la procedura di installazione descritta qui: https://github.com/trulyspinach/SMCAMDProcessor



Installazione
SMCAMDProcessor ora è disponibile in due binari separati (estensioni del kernel):

AMDRyzenCPUPowerManagement.kext per tutte le funzionalità di gestione dell'alimentazione. Questo kext è necessario anche se desideri utilizzare AMD Power Gadget.
SMCAMDProcessor.kext per pubblicare le letture su VirtualSMC, che consente alle applicazioni macOS come iStat di visualizzare i dati del sensore. Questo kext dipende da AMDRyzenCPUPowerManagement.kext per raccogliere i dati del sensore, quindi deve essere caricato dopo.
Scarica i kext e l'applicazione dalla pagina di rilascio
Aggiungi AMDRyzenCPUPowerManagement.kext alla cartella kext del tuo bootloader.
Modifica il file di configurazione del tuo bootloader per assicurarti che kext sia abilitato.
Se stai usando VirtualSMC puoi anche caricare SMCAMDProcessor.kext per pubblicare i dati del sensore.
Bootloader come OpenCore collegheranno ogni kext nell'ordine in cui sono presenti nel file di configurazione, quindi assicurati che AMDRyzenCPUPowerManagement.kext venga prima di SMCAMDProcessor.kext poiché funge da dipendenza.

  • Like 1
Link to comment
Share on other sites

  • Support Team

KEXTs

  • Fixes issues in symbol resolving that cause panic in Big Sur.

Known issues

  • Sliders in fan control panel might not display correctly.
    Workaround: you can still drag at the correct position of sliders on each row to adjust fan speed.
Assets4
Link to comment
Share on other sites

  • Support Team

0.6.6

KEXTs
La frequenza del processore ora si aggiorna correttamente dopo il risveglio dalla sospensione.
AMDRyzenCPUPowerManagement non si rifiuta più di caricare su CPU Zen 3.
Il supporto per tutti i modelli Zen 3 non è confermato poiché AMD non ha ancora rilasciato la documentazione per la piattaforma. Se hai problemi con Zen 3, apri un nuovo problema.
Gadget AMD Power
Power Tool ora si aggiorna correttamente dopo essere nascosto e riapparire.
Appunti:
SMCAMDProcessor.kext non ha nuove modifiche dall'ultima versione e quindi non è stato incluso. È comunque possibile scaricare l'ultima versione dalla versione precedente.

  • Like 1
