[Basic Guide] OpenCore BootLoader's Configuration


Gengik84

Recommended Posts

  • Administrators

Hi people..



I will show some basic informations to start configuring OpenCore bootloader.







This is EFI's structure



EFI



├── BOOT



│  └── BOOTx64.efi



└── OC



├── ACPI



│   └── Custom



├── Drivers



├── Kexts



├── OpenCore.efi



└── Config.plist







As you can see inside EFI folder we have two nested folders BOOT and OC ... This is a structure very similar to Clover bootloader one, inside BOOT we have BOOTx64.efi, this file is mandatory to have a working boot.



Inside OC we have all necessary folders like ACPI,Drivers,Kexts



inside ACPI we cand find Custom folder, this will be the place where we have to put our patched ACPI if our hack needs them.







In Drivers folder we have to put all drivers we need to boot. Important NOTE:No x64 extension is needed for them



You DO NOT use Clover's drivers , in OpenCore they are different (vBox is an exception alternative to HFS.plus



Main Drivers are:



AptioMemoryFix



ApfsDriverLoader (mandatory if you have a disk in apfs format, otherwise you do not need of it



HFS.plus or vBox







Kexts: Obviously , here we will put extra kexts







Open config.plist with a PlistEditor or with Xcode if installed in your system





for good English translation.

Config struttura.png

Config struttura.png

  • Thanks 1
Link to comment
Share on other sites

  • Administrators

ACPI first step

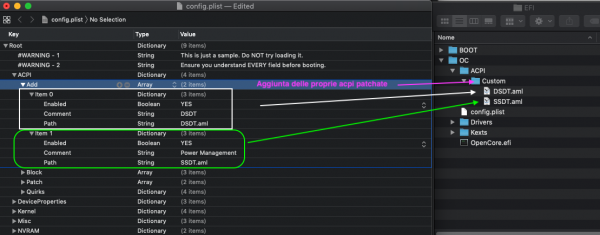

If you have to use patched ACPI it is mandatory to put them inside this folder: EFI/OC/ACPI/Custom



Then you have to define and enabled it as pictures below



Next we have to define and enable to load it



Successivamente definite e abilitate per il caricamento

Schermata 2019-09-27 alle 11.18.29.jpgEsempio nome convertito.png



You can drop also in other way, you can use table OEM "name"



Open it with maciasl app and check it

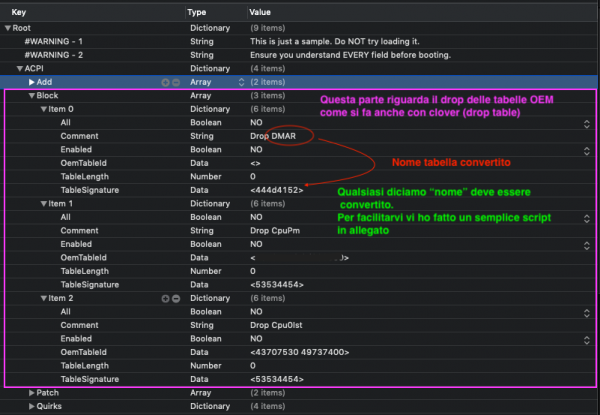

hack.jpgstrTohex.zip

Aggiunta acpi.png

Drop Table.png

Esempio nome convertito.png

Esempio drop tabella ssdt usb.png

Drop nome tabella oem.png

strTohex.zip

Aggiunta acpi.png

Drop Table.png

Esempio nome convertito.png

Esempio drop tabella ssdt usb.png

Drop nome tabella oem.png

strTohex.zip

Link to comment
Share on other sites

  • Administrators

Device Properties

melD0n.jpg59[/color]120000 and FakeID 0x59128086







First of all we have to invert numbers order two by two. You do not have to consider first 0x







so, ig-platform-id with Properties is:



AAPL,ig-platform-id 00 00 12 59







instead for FakeID value you have to omit 0x and also 8086 will be transformed to 0000



so we will have:



device-id 00 00 12 59

GFX0/IGPU[/b]



PciRoot(0x0)/Pci(0x2,0x0)







HDEF/HDAS



PciRoot(0x0)/Pci(0x1b,0x0)



IE when we set layout to 1 in our config you will have this:


ig-platform-id iniettato.png



ig-platform-id iniettato.png


Link to comment
Share on other sites

  • Administrators

Kernel







ADD:



In this section we have to declare all kext we use in EFI folder

Schermata 2019-09-26 alle 17.29.14.jpgBundlePatch[/b]: "name".kext



Enabled: YES or NO option to load it or not



ExecutablePatch: it shows path for executable file



MatchKernel: this is usefull to declare OSX in use or better to declare optimal OSX for kext, in clover we have different folders (10.12,10.13 and so on) where we put relative kext useful for installed OSX







How to know which value we have to use in it?







18 value is for Mojave.. previous version have 17 or 16



IE inserting 18 our kext will be loaded on all Mojave release (from 10.14 to 10.14.6 if it exists)







We have also the chance to define a specific OSX version in this way.



today latest Mojave beta is 10.14.5



If we would like to choose a more precise OSX version?



Well. today latest Mojave beta is 10.14.5 that is 18.6



How to achieve this task?



Open a terminal windows and type:

[code]uname -r

[/code]

Schermata 2019-09-26 alle 17.09.25.jpg[/b]info.plist path which is pretty surely (about 99% of situation)the same path



Block

hack.jpgQuirks[/color]

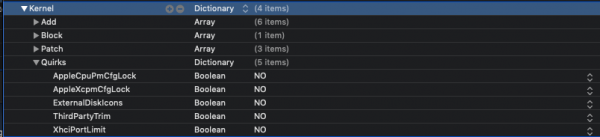

Qui troviamo alcune patch


Kernel-kext abilitazione.png


kernel quirks.png



Kernel-kext abilitazione.png


kernel quirks.png

Link to comment
Share on other sites

  • Administrators

UEFI



In this section we will declare efi drivers we use



In this picture we show basic one driver



If you have defined some drivers in your config but they are not present in Drivers folder, your system will hang on boot.



To solve you have to remove or disable relative option in config.plist, or you can copy in Drivers folder that driver



Note: If you use FV2 you have to add some drivers to have a working FV2
