thenightflyer

Prendo spunto dalla build di Tomnic per un secondo hack da dedicare esclusivamente alla produzione audio....una domanda, è possibile avere i settaggi bios per la ASRock Z690 phantom gming 4 che vorrei abbinare all'i7 13600k?

Si può chiudere

SI certo se sei interessato contattami in PM

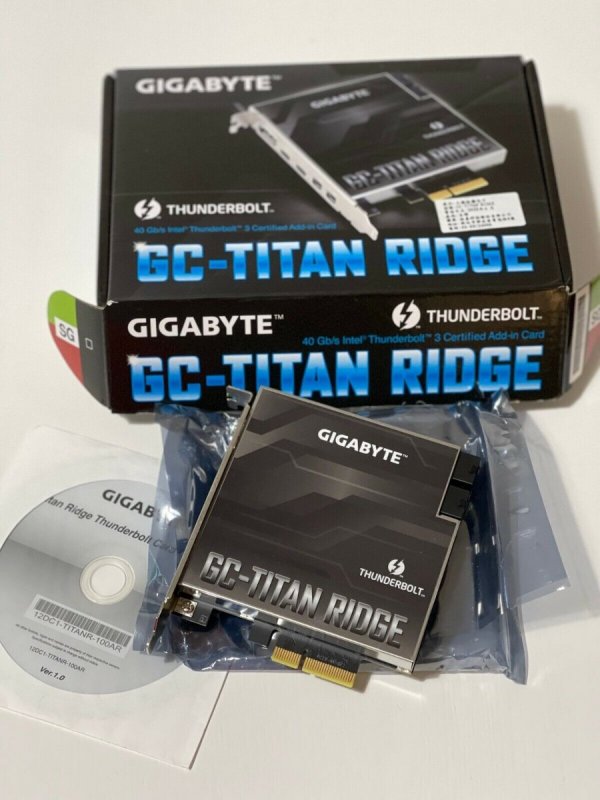

If you use a flashed GC card you don't need to connect the cable to TB Header on Motherboard otherwise the controllers will not work! TB Header i sonly needed for non flashed cards! A regular GC card will work on Hackintosh but you will not have hot swap function like you can have with a flashed card

Ciao...vendo la tr con firmware patchato solo ed esclusivamente perchè non la sto più usando...è da tanto tempo oramai che sono passato a windows anche per un discorso di "facilità" nel reperire alcune DAW. Comunque quando la utilizzavo con la mia UAD non avevo alcun problema di compatibilità ne avuto mai blocchi del sistema. Ovviamente usavo l'SSDT creato tramite il link web indicato nella procedura di patch della scheda.

Vendo completo di cavo modificato e firmware Elias64FR.bin patchato. Spedizione inclusa nel prezzo finale che è di 150 Euro. Nessuna imperfezione o malfunzionamento.

Thanks 👍

I'm trying to install Mojave on my ryzentosh but installation process doesn't start....of course it dependes from missing kernel patches for Mojave. I search in github and there is a list of patches....but i'm as a newbie with AMD hacks so could someone help me to find the correct patches to use with Mojave?

Major changes using OC compare are the following: config.plist -> Kernel -> Quirks - Missing Key: SetApfsTrimTimeout config.plist -> Misc -> Boot - Missing Key: LauncherPath config.plist -> Misc -> Boot - Missing Key: LauncherOption config.plist -> DeviceProperties -> Add - Missing Key: PciRoot(0x0)/Pci(0x1b,0x0) config.plist -> UEFI -> Quirks - Missing Key: DisableSecurityPolicy config.plist -> PlatformInfo - Missing Key: UseRawUuidEncoding config.plist -> PlatformInfo -> Generic - Missing Key: MaxBIOSVersion Sample.plist Misc -> Security - Missing Key: BootProtect

@Ploddles....did you upgrade to oc 0.66? Are there any major changes with the previous?

Any suggestions or help to improve my system are welcome!

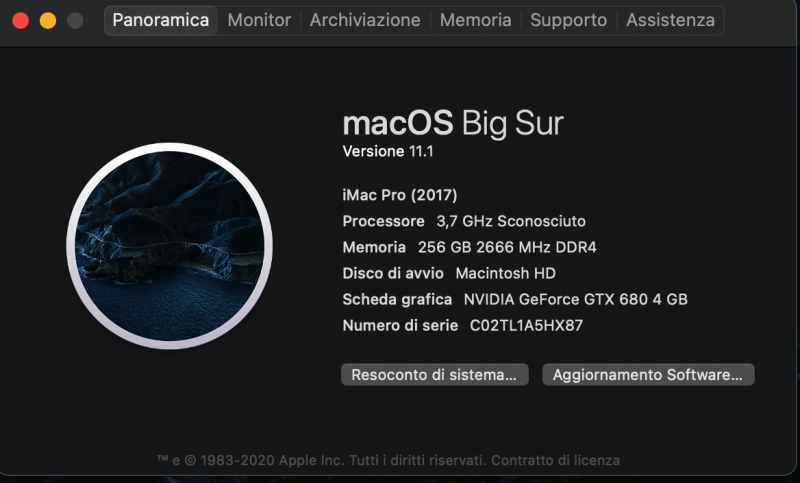

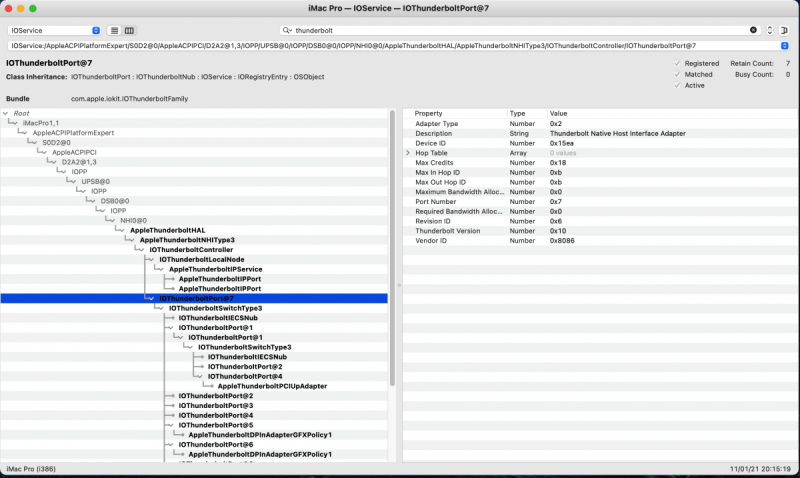

Finally, after several doubts and after 10 years of Intel Hackintosh builds i decided to switch to this new platform. The one who suggested and helped me with this new kind of setup was fabiosun. I'm still testing and not finished my build...it's work in progress but i hope to finish and complete this thread during Christmas Holidays. My setup is the following: Case: Thermaltake Level 20XT TK Level 20 XT Motherboard: Gigabyte Designare TRX40 rev. 1.1 Designare CPU: AMD Ryzen Threadripper 3970X CPU PSU: Enermax EPM 1700 EGT PSU RAM: 256GB Patriot Viper Blackout (32GBx8) RAM CPU Cooler: EK-Quantum Power Kit D-RGB P360 CpuCooler Thermal Paste: Grizzly Kryonaut CPU Paste SSD: 1 Sabrent SSD Rocket NVME PCie 4.0 1Tb Rocket - 2 Sabrent SSD Rocket NVME M2 1Tb Rocket M2 HDD: 1 Seagate Barracuda Pro 10TB HDD External HD - Lacie D2 Thunderbolt 3 10Tb Lacie Monitor: Asus TUF Gaming VG289Q 28" Monitor GPU: Asus GTX 680 DirectCU II 4GB GPU (waiting for Radeon 6xxx XT osx support!) Thunderbolt 3 card: Gigabyte Titan Ridge Card 1.0 PCie (patched with custom firmware) TB3 Audio Interface: UA Apollo Twin MKII Duo TB3 Audio Card OS: MacOS Big Sur 11.1 (20C69) Finally the machine is ready and after several days (due to personal commitments too!) of testing i can tell that everything i need work except some app that require virtualization (like Parallels desktop or Crossover). Cpu temp are quite low (35°/55° max) because the cpu demand using Native Instruments or other VST plugins is not so high. Bluetooth and Wi-Fi work without issues, USB ports too. Shut down works with ERP enabled too in Bios. Only if i attach an USB3 hub to any of the rear USB ports after 3 seconds of shut down the system restart. I must still investigate this problem. But my "victory" is thunderbolt 3....an hackintosh is not a full working machine without thunderbolt! I use a Gigabyte Titan Ridge Card with patched firmware. It's in the last PCI slot, port 7 enabled, it recognizes my audio interface and hot plug works without any issues! I'm using Big Sur, and i've no reset or hangs. Every music production app i use is running without problems, so Native Instruments, Omnisphere Keyscape and Trillian, every VST plugin like Zebra, Diva etc. I don't use any graphic or video app so i don't need a "big" GPU. I sold my Radeon VII waiting for RX 6900XT support. Now i've an old Nvidia GTX 680 with 4GB....it's native and it's enough for me now! The only app i cannot use is Parallels Desktop and wine like Crossover. When i launch a Windows machine with Parallels the system restarts. If i use a windows app with Crossover bottles i've exception error with the app. Maybe it's normal with AMD cpu...but atm i don't care about this issue. BIos settings are the same as arrakis build. Some voices from 1.0 motherboard rev. and 1.1 are differents. I will try to attach screenshots of my bios settings too. Attached is my EFI with Opencore 0.65 Thanks to fabiosun for his patience helping me to configure the system, and to arrakis because i took his EFI as sample to start my system after the first setup. Thanks to all MacOS community too...your suggestions are always welcome. EFI-TNF-OC065.zip

@ArrakisOk i set up my system and i tried your EFI but maybe you did some mistake in packaging it because i've no image found so i tried to use 0.64 release with your config and kext and now i'm able to boot. Please can you upload again your updated EFI?

I'm waiting my new designare with 3970X cpu....i will start with your efi to see if with a different cpu BS will start too. Did you put in 1 slot the videocard, and thunderbolt? In 4th slot? Can you insert pictures of bios settings?
